ASTM A992 Wide Flange H Beam for Construction

ASTM A992 wide flange h beam

ASTM A992 steel is currently recognized the most available steel grade for wide flange beams around the world. It contains several alloy elements like vanadium or columbium, copper, nickel, chrome and molybdenum, all of which greatly improves its strength and other properties. Mechanical properties, for example, exhibit much better than A572-50 & A36 - tensile strength 65ksi & yield strength 65ksi. Hence, A992 wide flange beams (H beams) are generally replacing A572-50.

Product description:

Item: A992 W-beam (or H-beam).
Technology: hot rolled.

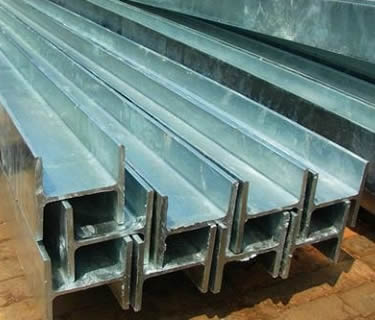

Surface treatment: black, galvanised or primed.
Dimensions: HEA, HEB & HEM.
Note: Non-standard H beam sizes are available on order.

ASTM A992 w-beam (or h-beam) chemical composition
Steel grade	Styles	Carbon, max, %	Manganese, %	Silicon, max, %	Vanadium, max, %	Columbium, max, %	Phosphorus, max, %	Sulfur, max, %
A992	Steel sections	0.23	0.50 - 1.60	0.40	0.15	0.05	0.035	0.045

ASTM A992 W-beam (or H-beam) mechanical property
Steel grade	Styles	Tensile strength, ksi	Yield point, min, ksi
A992	Steel sections	65	65

ASTM A992 wide flange h-beam sizes - HEA according to DIN1025-3
Item	Weight (kg/m)	Height (mm)	Flange width (mm)	Web thickness (mm)	Flange thickness (mm)
HEA100	17.1	96	100	5	8
HEA120	20.3	114	120	5	8
HEA140	25.2	133	140	5.5	8.5
HEA160	31	152	160	6	9
HEA180	36.2	171	180	6	9.5
HEA200	43.2	190	200	6.5	10
HEA220	51.5	210	220	7	11
HEA240	61.5	230	240	7.5	12
HEA260	69.5	250	260	7.5	12.5
HEA280	77.9	270	280	8	13
HEA300	90	290	300	8.5	14
HEA320	99.5	310	320	9	15.5
HEA340	107.1	330	340	9.5	16.5
HEA360	114.2	350	360	10	17.5
HEA400	127.4	390	400	11	19
HEA450	142.7	440	450	11.5	21
HEA500	158	490	500	12	23
HEA550	169.2	540	550	12.5	24
HEA600	181.4	590	600	13	25

ASTM A992 wide flange h-beam sizes - HEB according to DIN1025-2
Item	Weight (kg/m)	Height (mm)	Flange width (mm)	Web thickness (mm)	Flange thickness (mm)
HEB100	20.8	100	100	6	10
HEB120	27.3	120	120	6.5	11
HEB140	34.4	140	140	7	12
HEB160	43.5	160	160	8	13
HEB180	52.2	180	180	8.5	14
HEB200	62.5	200	200	9	15
HEB220	72.9	220	220	9.5	16
HEB240	84.8	240	240	10	17
HEB260	94.8	260	260	10	17.5
HEB280	105	280	280	10.5	18
HEB300	119.3	300	300	11	19
HEB320	129.5	320	300	11.5	20.5
HEB340	136.6	340	300	12	21.5
HEB360	144.8	360	300	12.5	22.5
HEB400	158	400	300	13.5	24
HEB450	174.3	450	300	14	26
HEB500	190	500	300	14.5	28
HEB550	202.8	550	300	15	29
HEB600	216.1	600	300	15.5	29

ASTM A992 wide flange h-beam sizes - HEM according to DIN1025-4
Item	Weight (kg/m)	Height (mm)	Flange width (mm)	Web thickness (mm)	Flange thickness (mm)
HEM 100	42.6	120	106	12	20
HEM 120	53.1	140	126	12.5	21
HEM 140	64.5	160	146	13	22
HEM 160	77.8	180	166	14	23
HEM 180	90.6	200	186	14.5	24
HEM 200	105	220	206	15	25
HEM 220	119.3	240	226	15.5	26
HEM 240	160	270	248	18	32
HEM 260	175.3	290	268	18	32.5
HEM 280	192.7	310	288	18.5	33
HEM 300	242.6	340	310	21	39
HEM 320	249.7	359	309	21	40
HEM 340	252.8	377	309	21	40
HEM 360	254.8	395	308	21	40
HEM 400	260.9	432	307	21	40
HEM 450	268.1	478	307	21	40
HEM 500	275.1	524	306	21	40
HEM 550	283.4	572	306	21	40
HEM 600	290.5	620	305	21	40
